JA Solar JAM66D42MB 570-595W

JA Solar JAM66D42MB 570-595W

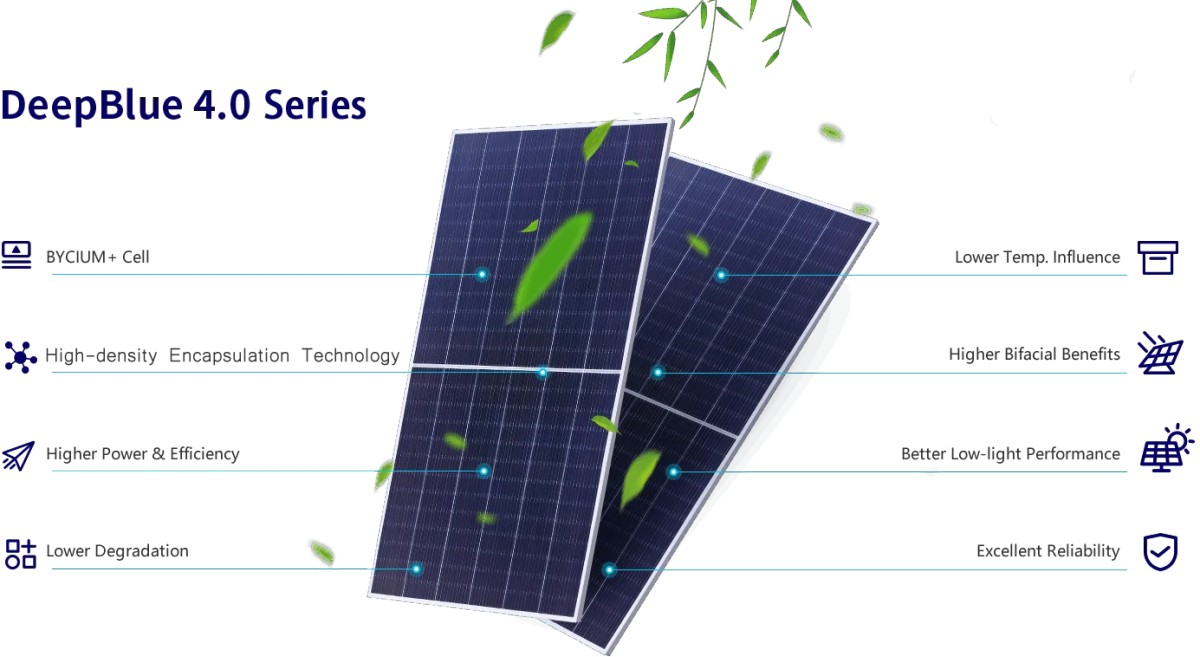

570W 575W 580W 585W 590W 595W JA Deepblue 4.0 Series n Type Double Glass Bifacial Modules, with higher power generation better LCOE, better temperature coefficient, lower LID and better low irradiance response.

1369@wxjingke.cn
+86 15370859062

MECHANICAL DATA
CellMono
Weight31.8kg
Dimensions2278±2mm*1134±2mm*30±1mm
Cable Cross Section Size4mm²(IEC)，12 AWG(UL)
No. of cells132(6*22)
J-BoxIP68, 3 diodes
ConnectorQC 4.10-351/ MC4-EVO2A


ELECTRICAL DATE(STC)
Rated Maximum Power(Pmax)[W]570575580585590595
Power Tolerance0~+3%
Open Circuit Voltage(Voc) [V]47.7847.9848.1848.3848.5848.78
Maximum Power Voltage(Vmp) [V]4040.2140.4240.6340.8441.03
Short Circuit Current(lsc) [A]15.1115.1615.2115.2615.3115.36
Maximum Power Current(lmp) [A]14.2514.314.3514.414.4514.5
Module Efficiency[%]22.10%22.30%22.50%22.60%22.80%23.00%
